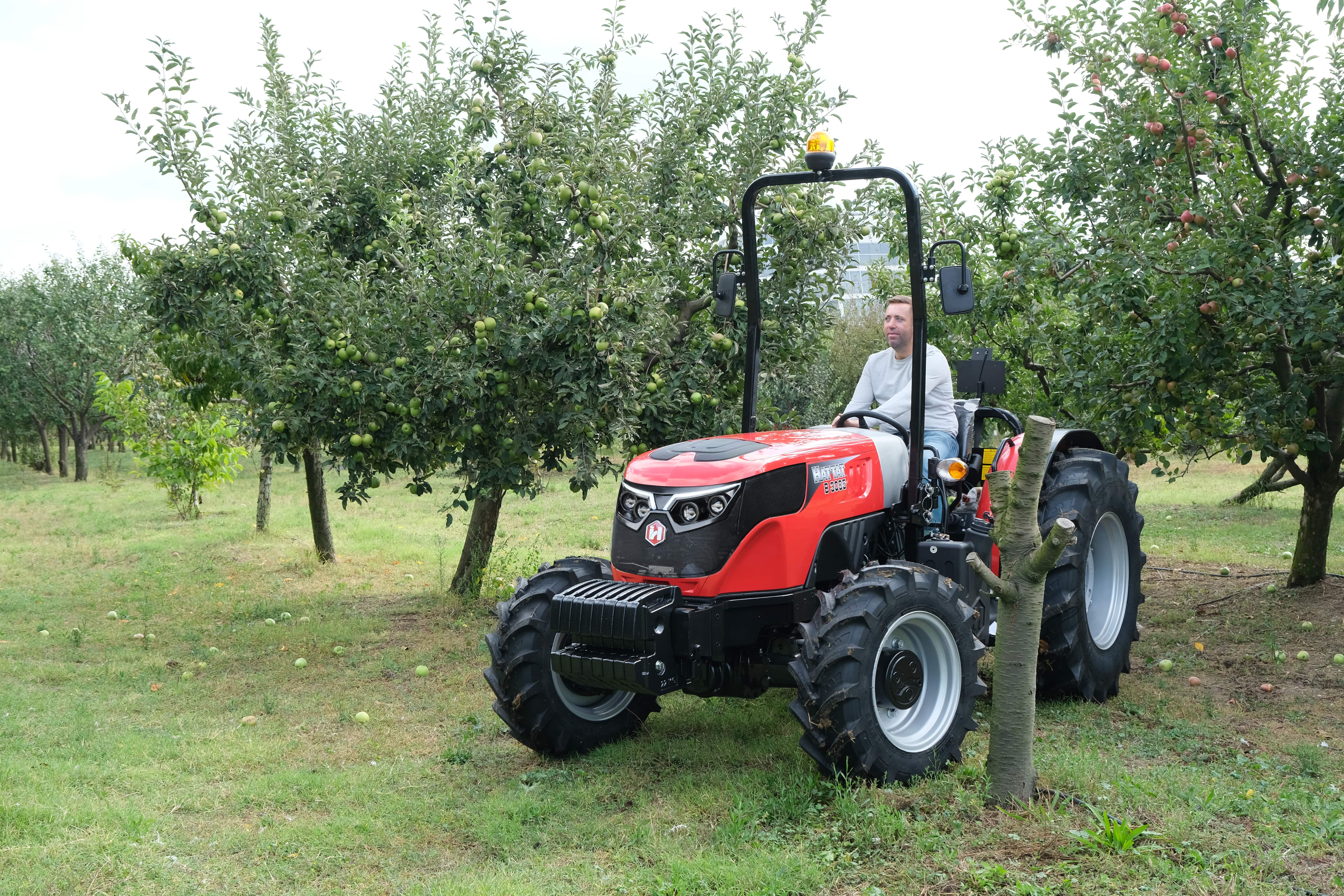

B3000 Stage 5



1

ENGINE AND TRANSMISSION

YOUR NEW BUSINESS PARTNER HATTAT MODERN B SERIES
The completely renewed Hattat Modern BSeries is produced by Fiat Powertrain Technologies (FPT).

the F28 Stage5engine. F28 engine with 4 cylinders 2.8 L with 1600 bar high pressure

Electronic CommonThanks to therail injectionsystem, it saves 15% fuel.

never compromises on high torquepower.


THE POWER IS UNDER YOUR FOOT

Stage 5 engine ,which is the heart of Hattat Modern B Series, starts to offer you the highestpower and

torquevalues even at low revs.Thus, all you have to do is press theaccelerator pedal.


WE ARE ON THE FRONTLINES TO BE ENVIRONMENTAL

Advanced DOC+DPF ( DieselOxidationThanks to theCatalyst ,Diesel OxidationCatalyst)+(DieselParticulate Filter) system, we filter harmful gases and protect ourenvironment.


HEMA TRANSAXLE AND FRONT AXLE

The front axle and rear axle designed andproduced by HEMAENDÜSTRİ have passed all heavy tests with success. It is used in Hattat Tractormodels.


THE NEW FACE HAS EVEN KEPT UP TO THE MODERN AGE

The new front face, designed entirely byCalligrapher Engineers, is almost a part of the modern age. In the new HattatModern B Series, your path is always bright with advanced led headlighteyebrows and lensed headlights.


NO PROBLEM TO COOL

Engine Technology in the world isconstantly developing. As the need for more power and more torquearises,the thermal values of the motors that power us increase. In the new HattatModern B Series, the air-permeable grill area has been increased to bring theengine temperature to the optimum level, and it has passed many testssuccessfully.


MAIN TENANCE IS NOW EASY

We provide the clean air needed by theF28 Stage5 engine with an ergonomic, easy-to-maintain air filter.


WE THINK ABOUT PERFORMANCE

We’ve helped the Modern B Series’performance with both fuel and oil cooler.

With the circuit breaker switch, you canturn off all the electricity and secure your tractor when you are not using it.


IS FUEL ENOUGH? WE DON’T ASK QUESTIONS!

Our new Hattat Modern B Series tractorswill not let you down in your work all day long with the 70 L fuel tankcapacity positioned on the left side of the driver.

2

FUNCTIONAL FEATURES

BALANCEIS OUR BUSINESS

Hattat Engineers calculate the weight ofthe tractors in the field according to the maximum holding performance andminimum fuel consumption and put them through numerous tests.

The new Modern B Series increases fielddriving dynamics with optimum balance, 8x22=176 Kg front weights and 4x30=120Kg rear weights.


PERFECT TURNING DIAMETER

The new Hattat Modern B Series providesyou a comfortable ride by reducing your maneuvers with its capable turningcircle.


EQUIPMENT FRIENDLY

Lift your load comfortably with a liftingcapacity of 3000 Kg thanks to the double auxiliary cylinder.

Use your equipment comfortably with the540-540E PTO power output.

Use all kinds of trailers with the veryuseful lift drawbar and drawbar.

Manage your equipment with 4 hydraulicpower outputs.

With the lift sensitivity knob, you canmake precise adjustments and make your work easier.

3

ERGONOMY AND COMFORT

ERGONOMIC AND CONVENIENT PLATFORM

The new Hattat Modern B Series platformhas an ergonomic and useful structure.

You can easily open and remove the shockabsorber supported front rops .


ERGONOMIC AND CONVENIENT PLATFORM

All information is on the screen with thedigital instrument panel.

Adjust the engine speed according to yourdesire with the electronic hand throttle.

Customize the adjustable steering wheelfor your own comfort.

Do your DPF (Diesel Particulate Filter)cleaning.

When you need power, you can activate theElectro-Hydraulic 4x4 system.

Operate your equipment in the positionsyou set with the Otolift latch.

Activate the Electro-HydraulicDifferential Lock in difficult terrain conditions and leave the rest to yourtractor.

Take your place in the narrowest gardenswith foldable signal lights.


ERGONOMIC AND CONVENIENT PLATFORM

the easy-to-use shuttlearm,you can move forward and backward and accelerate your maneuvers.

You can comfortably manage the fully synchromeshgearbox with 12+12 forward-reverse options and set the optimum driving dynamicsin the garden and field.

When you press the brake, theElectro-Hydraulic 4x4 is activated instantly and you never compromise onbraking performance.

Rod type clutch pedal does not requiremaintenance, it defies time with its smoothness. Pedal ergonomics does not tireyou out and increases your driving comfort.

4

DIMENSIONAL FEATURES

CONTACT FOR INFORMATION: serkanergul@hattat.com.tr
5

SPECIFICATIONS

6

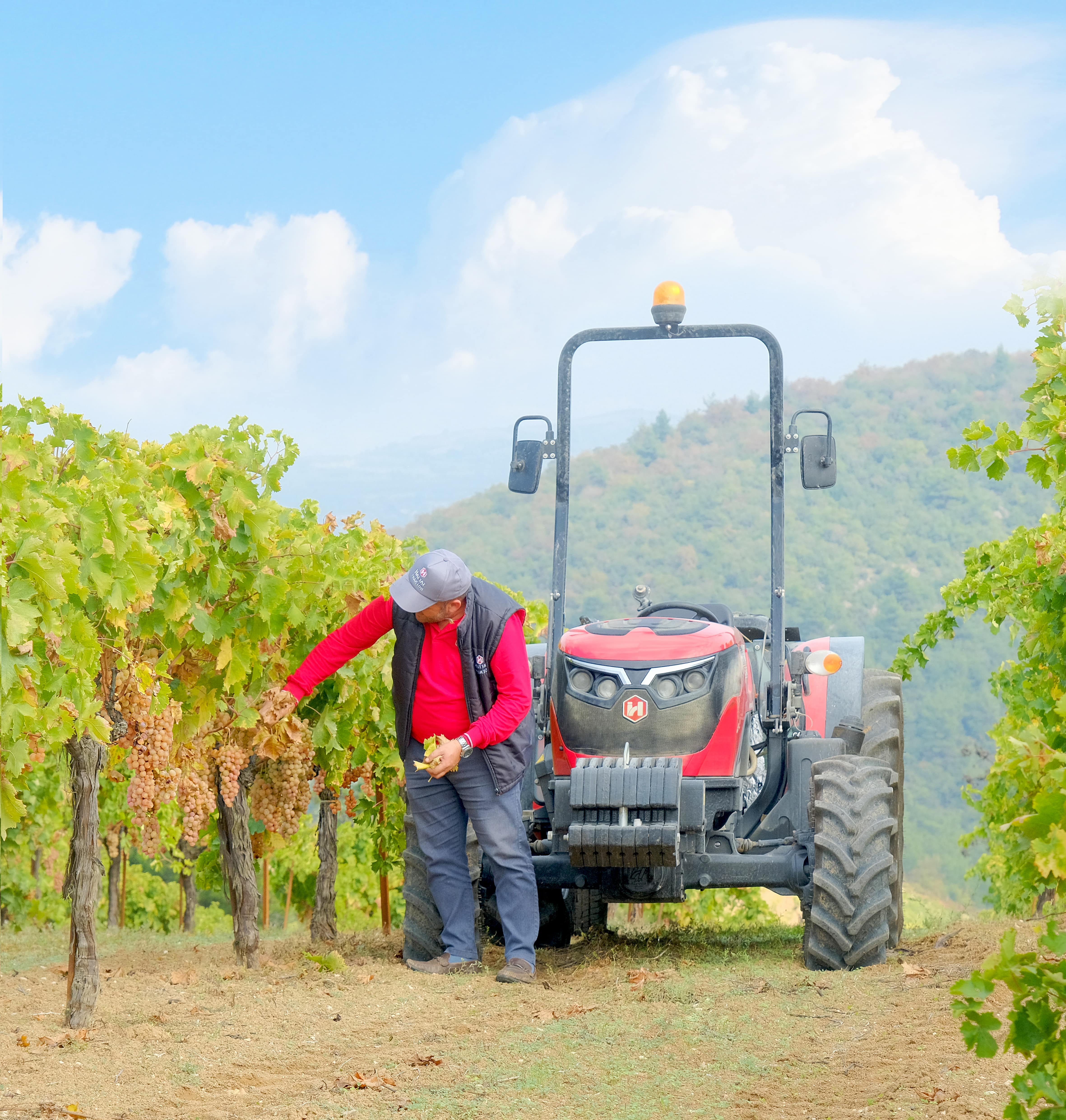

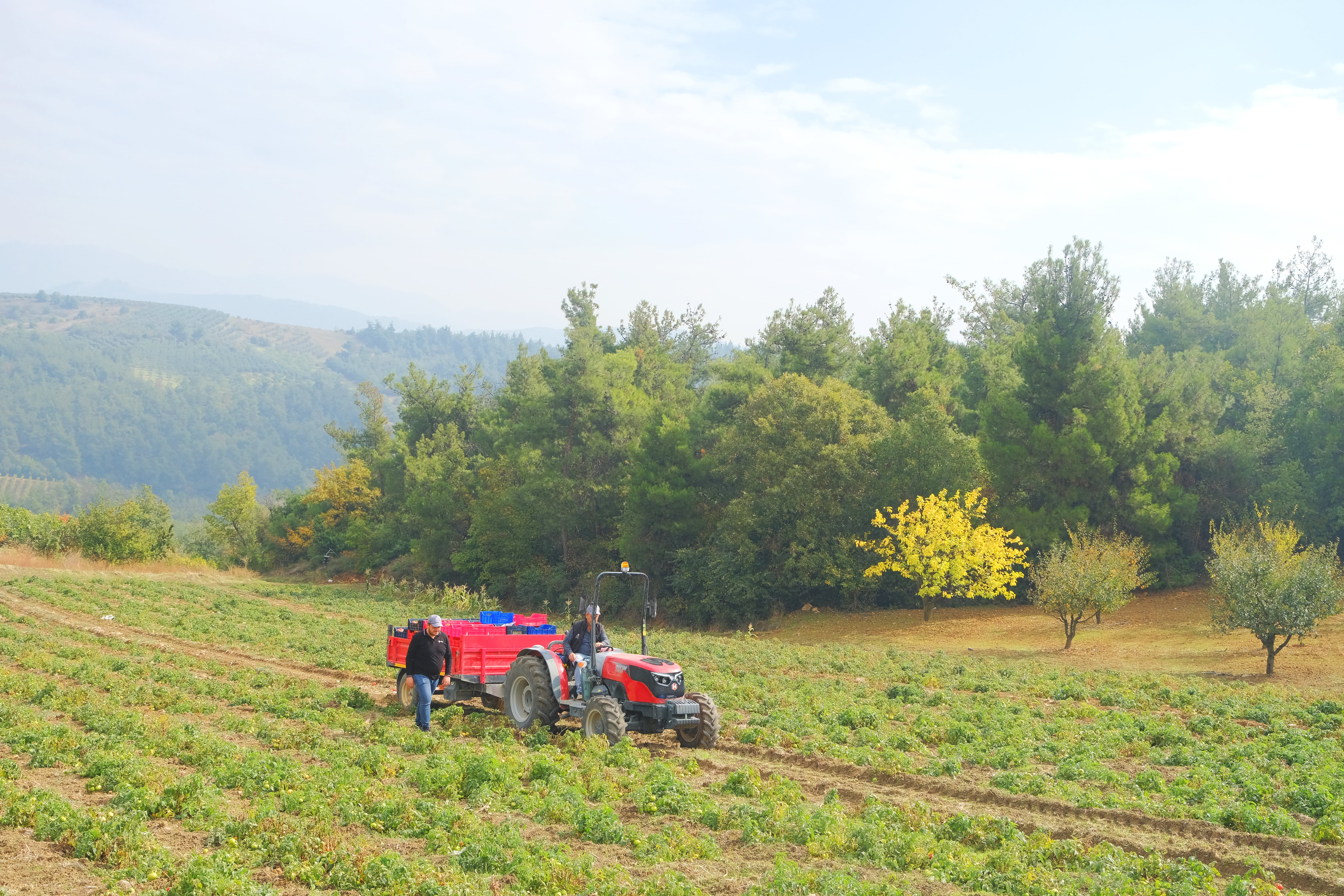

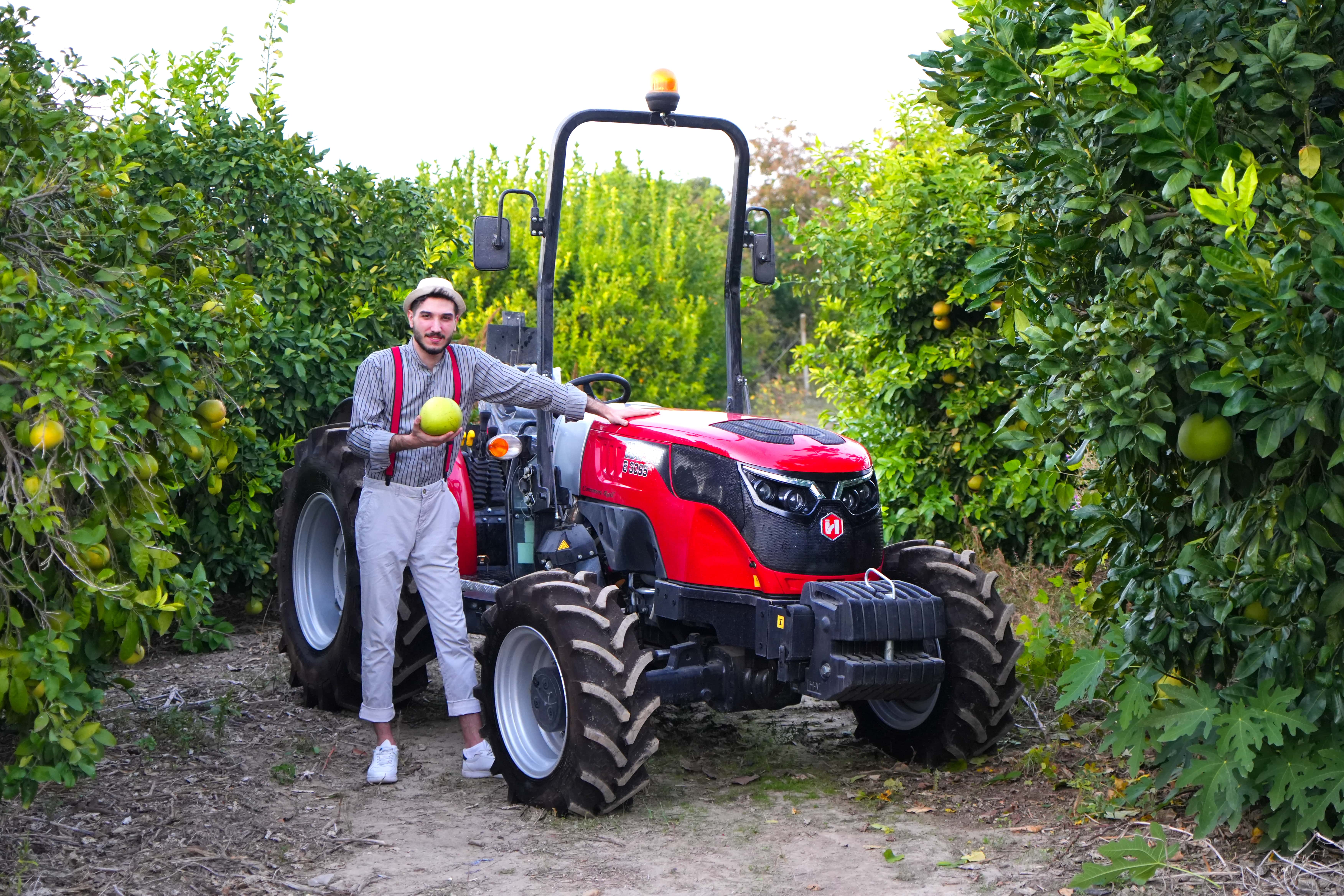

PHOTO GALLERY
